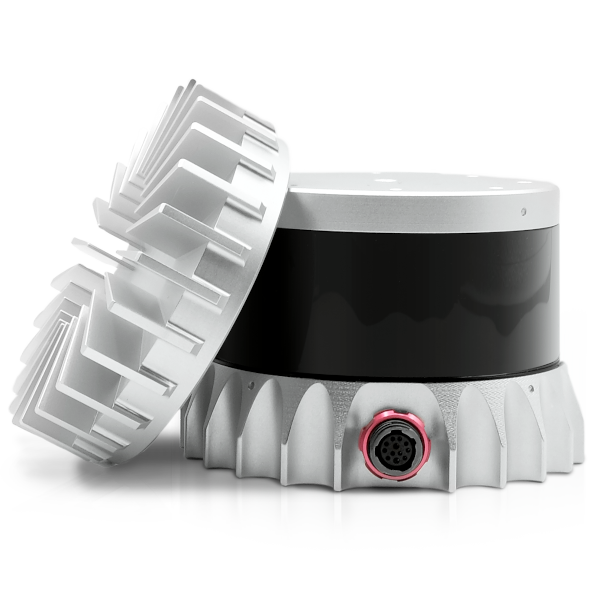

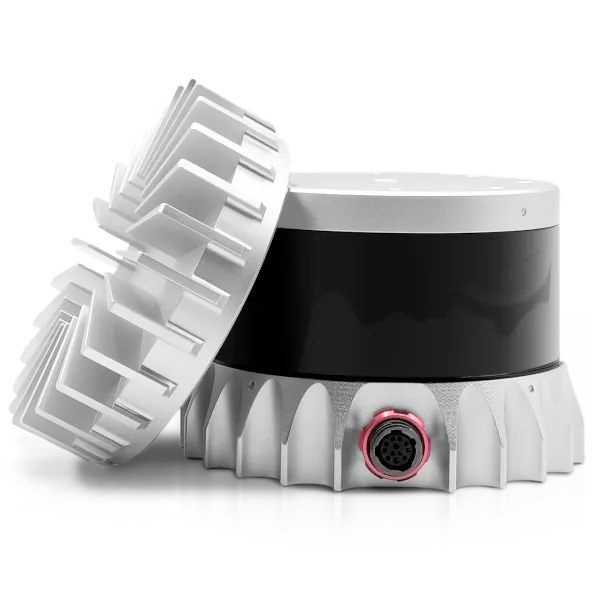

Ouster (Depreciated)

Attention

The ouster organization have updated their installation method. This will work only for pre-installed ouster modules before September 2022. All later ouster modules have a new method which will be updated in time.

The second recommended augment is the ouster lidar for the navigation and obstacle avoidance. Following is the guide for use and setup for the Ouster.

For the ouster attachment, the following package has to be installed in the current workspace. The following tutorial can be followed or the provided description.

Important

This tutorial is to only be followed if the ouster software is not already pre-installed.

1. Install dependencies:

sudo apt install build-essential cmake libglfw3-dev libglew-dev libeigen3-dev \
     libjsoncpp-dev libtclap-dev

2. Create a new folder in your catkin workspace named utils:

cd ~/catkin_ws/
mkdir utils
cd utils

3. Clone the repository into utils:

git clone https://github.com/ouster-lidar/ouster_example.git

4. Go into ouster_example and make a folder called build and go inside of the build folder:

cd ouster_example
mkdir build
cd build

5. Build the ouster_example from inside the build folder; be sure to give the absolute path to your ouster_example:

cmake -DCMAKE_BUILD_TYPE=Release <path to ouster_example>
make

Note

The path should look something like this /home/development/user/catkin_ws/utils/ouster_example

6. Connect the ouster with an ethernet cable, and follow the instructions provided in the software user manual chapter 2.

   • It may take 5-10 mins for it to be detected.

7. Next navigate to the utils and in there open a terminal and run:

chmod +x set_static_ip.py
python3 set_static_ip.py

8. Then make open up your ethernet connection that is in the settings and add a new connection. Give your desired name and then navigate to the IPv4 tab. In it change the connection to Manual. In the Addressess, give the address as 192.168.123.2 and the net mask as 255.255.255.0, and save. Then connect to this ip.

Attention

Any IP address can be given according to the requirement but the IP’s for the host and the client should remain in the same range e.g. 192.168.131.*

• Verify that the computer is receiving data from ouster via:

./ouster_client_example 192.168.123.1 ''

1. Install ros dependencies again via:

sudo apt install ros-melodic-ros-core ros-melodic-pcl-ros \
     ros-melodic-tf2-geometry-msgs ros-melodic-rviz

10. Source devel or restart terminal and navigate to the third_party package and enter the folder. Once there open up the terminal and create a virtual link to the outser_example from utils via:

ln -s <path to ouster_example>/ouster_example/ ./

11. Finally, go into catkin_ws and once again build the package:

catkin build
source devel/setup.bash

12. Verify installation via

roslaunch ouster_ros ouster.launch sensor_hostname:=192.168.123.2 metadata:=/home/development/ouster_metadata/ouster_meta.json viz:=true

• Be sure to change the path to your home directory accordingly.

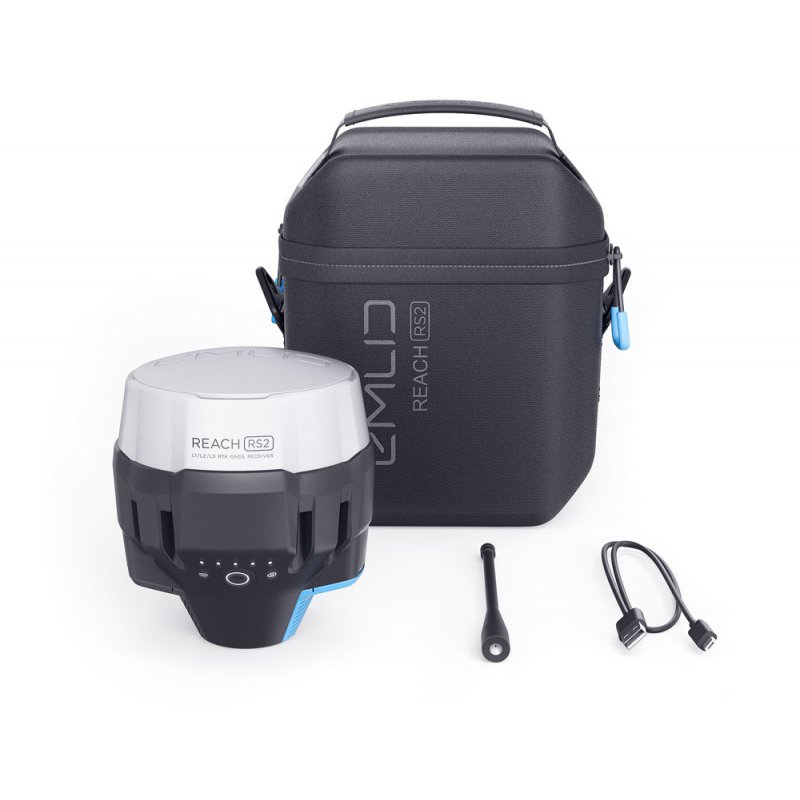

Emlid REACH RS2 (Depreciated)

Data Sheets

• Reach Emlid RS2 Data Sheet

Documentations

• Emlid RS2 Tutorial

• Emlid RS2 Base Rover Tutorial

Setup

The first recommended augment is the Emlid Reach RS2 GPS for the outdoor waypoint navigation. Following is the guide for use and setup for the Emlid GPS.

Important

Please note that the Emlid Reach RS2 works on 2.4GHz band when connecting to a WiFi network. Position of GPS relative to the ground severely effects accuracy and connectivity.

Requirements

• EMLID REACH RS2

• Internet connection

Procedure

1. Connect to the Emlid via it’s WiFi hotspot.

   • SSID: Reach

   • Password: emlidreach

2. Install the ReachView 3 app on the playstore.

   • Setup Reach on the available connections once available.

   • Provide internet connection to the emlid.

   • Reconnect to it in the app.

3. Rename and setup configuration

Emlid RS2 USB Connection

• Add a new udev file to /etc/udev/rules.d, for example sudo touch 45_emlid.rules

• In that udev file add, the following:

SUBSYSTEM=="net", ACTION=="add", ATTR{address}=="3032:0013", NAME="emlid0"

Note

Change the address to your EMLID ID address. The ID can be found via lsusb. Normally not required with default emlid configuration.

• Reload the udev rules via:

sudo udevadm control --reload-rules && sudo udevadm trigger

• Setup a static connection in you PC in e.g. 192.168.2.1 and now you should be able to access the Emlid in 192.168.2.15

Attention

The GPS data is sent over via NMEA messages, so please ensure to go to the Emlid via app or browser (192.168.2.15) and ensure that the one of the position output is set to tcp with the stream coming on NMEA.

Enabling Precision Mode

1. Goto the provided Emlid’s Reach panel for configuring high precision mode.

2. Get access to NTRIP connection which can be done by contacting your nearest receivers station.

3. In the Emlid Reach Panel go to the RTK settings.

   • Set position mode to kinematic.

   • Set elevation mask angle to 15 degrees.

   • Set SNR mask to 35.

   • Select all GNSS options.

   • Set update rate at 5hz.

4. Goto the correction input tab in the Reach panel and select NTRIP.

   • Fill in the information provided by your receiving station i.e.

     • ip address

     • port

     • username

     • password

     • mount point (Usually detected automatically)

     • Select send NMEA GGA messages to enable correction.

5. In base mode in you can set the base coordinated data accumulation time to 1 minute.

6. Verify in the status of the reach panel whether green as well as grey bars appear, indicating successful correction.

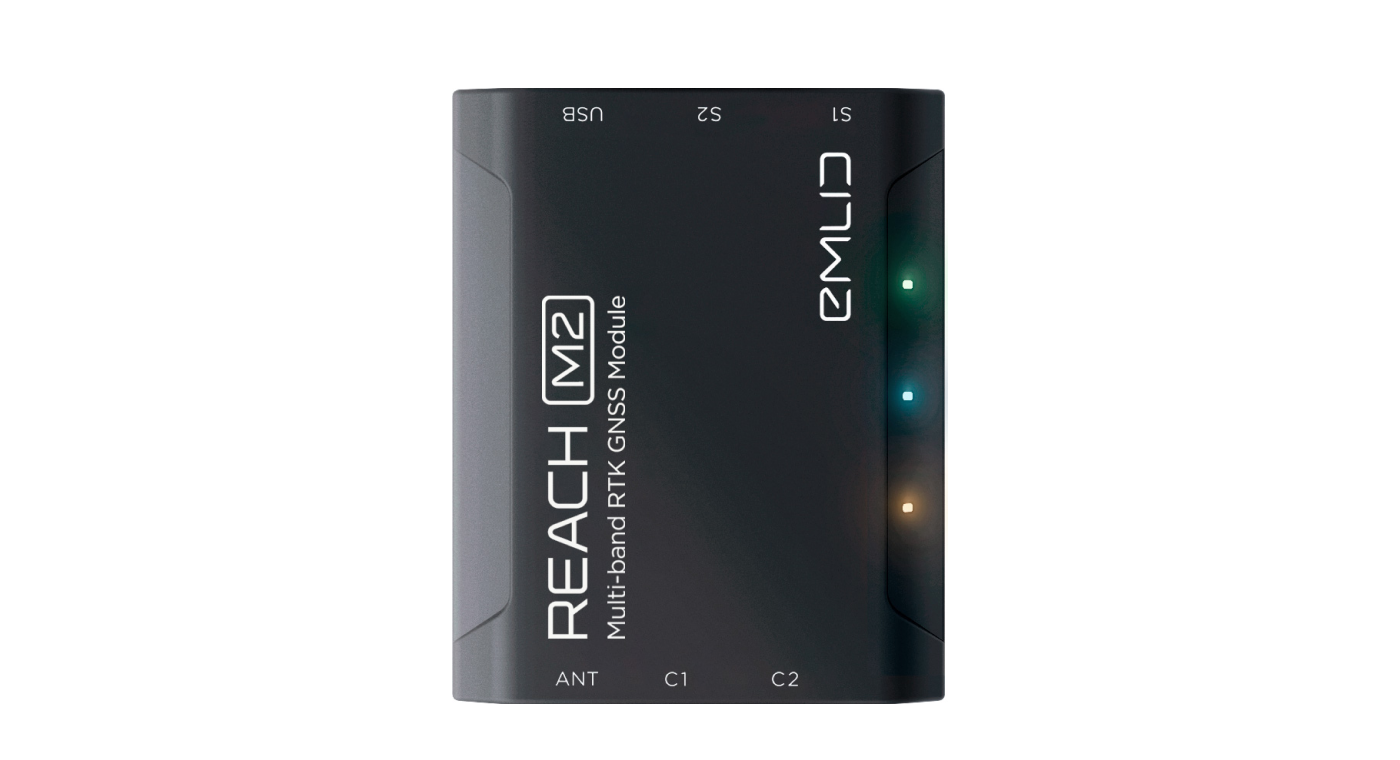

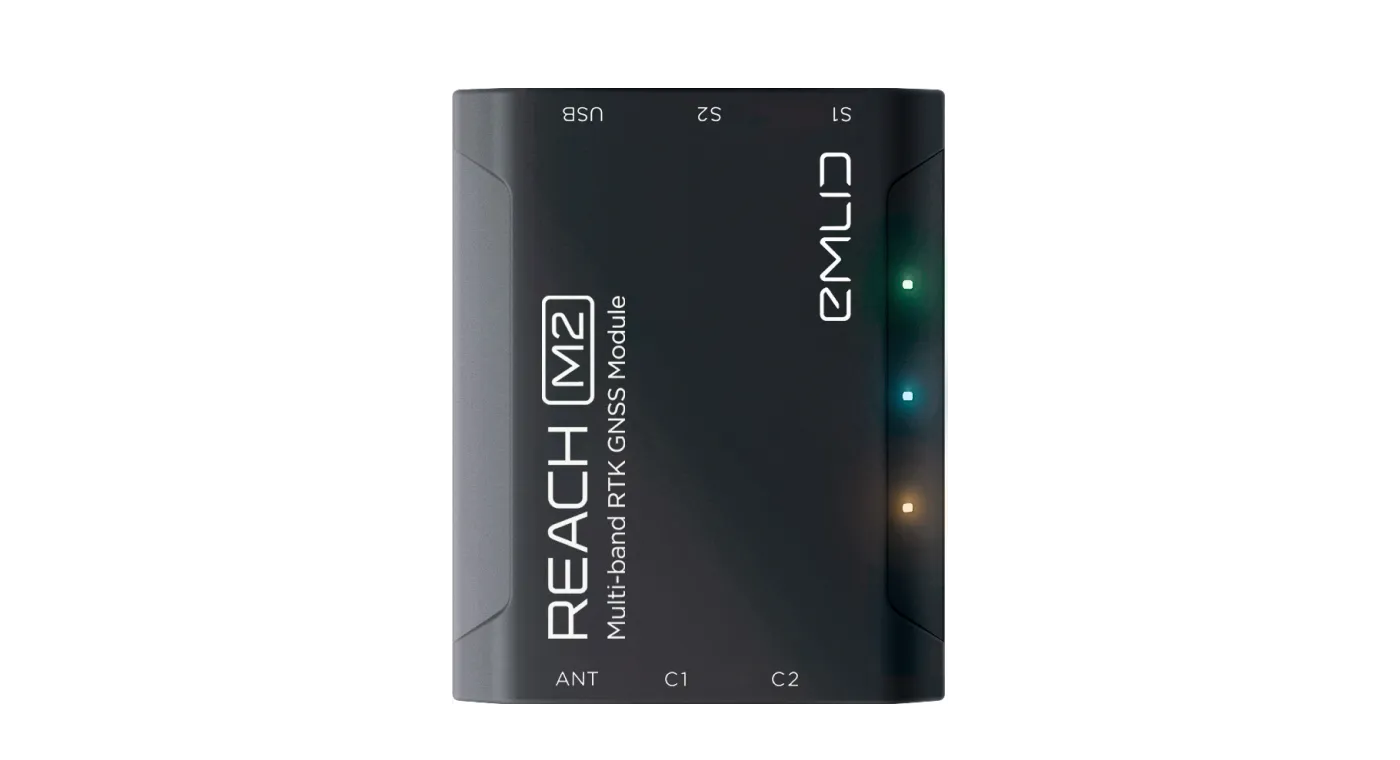

Emlid REACH M2 (Depreciated)

Important

Please note that the Emlid Reach M2 works on 2.4GHz band when connecting to a WiFi network.

• Emlid M2 Tutorial

Emlid M2 USB Connection

• Add a new udev file to /etc/udev/rules.d, for example sudo touch 45_emlid.rules

• In that udev file add, the following:

SUBSYSTEM=="net", ACTION=="add", ATTR{address}=="3032:0013", NAME="emlid0"

Note

Change the address to your EMLID ID address. The ID can be found via lsusb. Normally not required with default emlid configuration.

• Reload the udev rules via:

sudo udevadm control --reload-rules && sudo udevadm trigger

• Setup a static connection in you PC in e.g. 192.168.2.1 and now you should be able to access the Emlid in 192.168.2.15

Attention

The GPS data is sent over via NMEA messages, so please ensure to go to the Emlid via app or browser (192.168.2.15) and ensure that the one of the position output is set to tcp with the stream coming on NMEA.

Setting Up Base Station

• Base Rover Tutorial

Adding REACH RS2/M2 ROS Driver

1. All prior steps are required. Clone the following git repo, to your catkin workspace and build it:

cd catkin_ws/src
git clone https://github.com/enwaytech/reach_rs_ros_driver
catkin build

2. Add to your launch file:

<node pkg="reach_rs_driver" type="reach_rs_driver_node" name="reach_rs_driver_node">
     <param name="reach_rs_host_or_ip" value="{emlid ip address}"/>
     <param name="reach_rs_port" value="9001"/>
</node>

3. Goto the position output tab in the reach panel and change the output to TCP along with message type being NMEA.
