3D-SLAM

• Launch the indoor slam package via:

roslaunch mbs_slam indoor_slam.launch

• Launch the outdoor slam package via:

roslaunch mbs_slam outdoor_slam.launch

• Launch the localization slam package via:

roslaunch mbs_slam localization.launch

Saving the Point Clouds

rosservice call /hdl_graph_slam/dump

• Save all the internal data (point clouds, floor coeffs, odoms, and pose graph) to a directory.

rosservice call /hdl_graph_slam/save_map "resolution: 0.05 destination: '/full_path_directory/map.pcd'"

• Save the generated map as a PCD file.

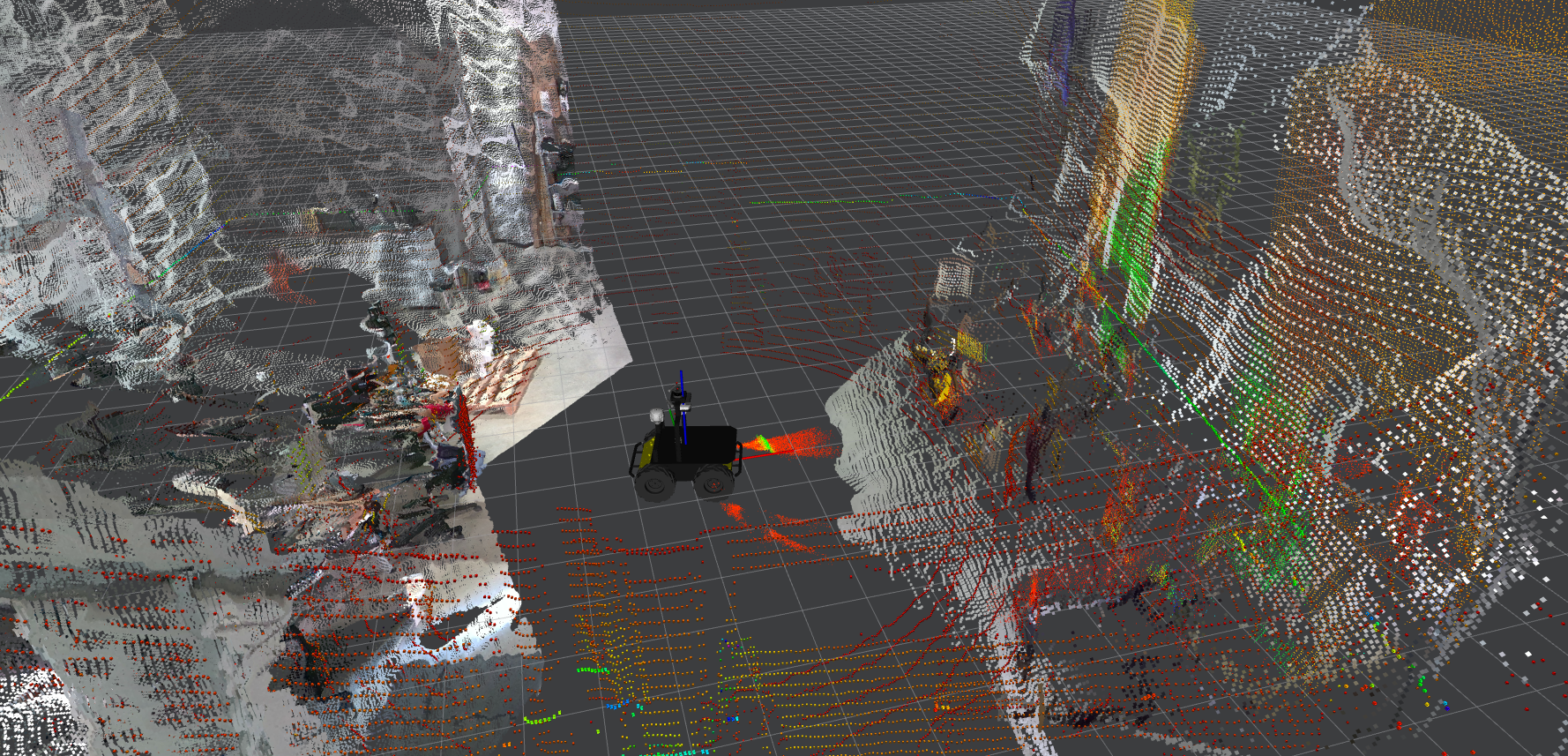

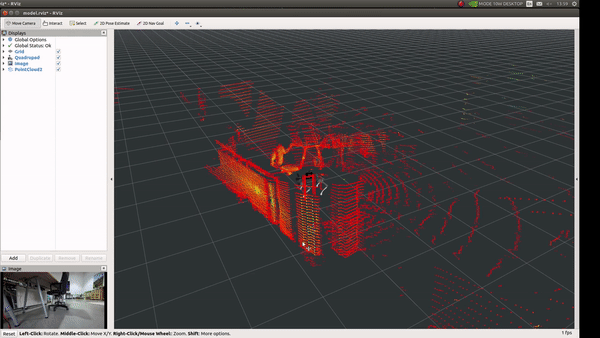

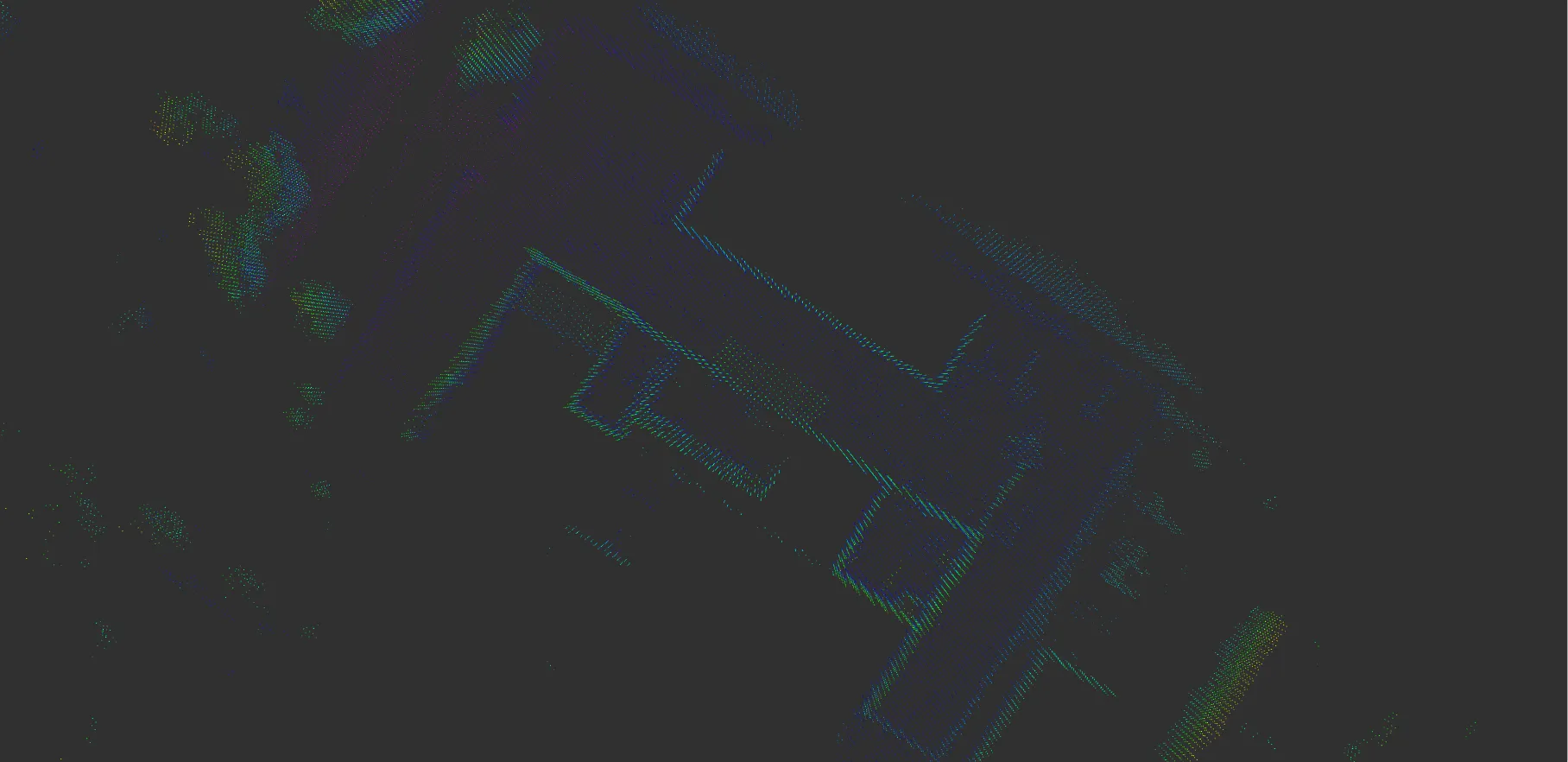

3D-Mapping

3D-SLAM Configurations

By default mbs_slam nodes requires /mbs/points(sensor_msgs/PointCloud2) to be published. All other sensor informations are optional. Indepth information on the configuration parameters can be found in koide3

GPS

enable_gps: True in case gps readings are provided. The mbs_slam node needs typically supports 3 types of GPS messages:

• /mbs/geopoint (geographic_msgs/GeoPointStamped)

• /mbs/navsat (sensor_msgs/NavSatFix)

• /mbs/nmea_sentence (nmea_msgs/Sentence)

From all of the above mentioned topics only longitude, latitude, and altitude are used and rest of the fields in the messages are ignored.

IMU Acceleration

enable_imu_acc: By default acceleration resulting from sensor motion is ignored therefore it is useful to provide this paramter (Do not set bigger values for this constraint.)

IMU Orientation

enable_imu_ori: In case the provided IMU has a reliable magentic sensor, orientation can be added as a 3d orientation constraint. In case of external magentic disturbances this paramter should be set to false.

Floor detection

For largescale flat indoor environments, this constraints can be specified. It will reduce the effect of accumulated rotation error.

3D-Localization

The node first does sensor localization using the onboard imu on the lidar. Odomerty prediction based on external imu is optional, if not set constant velocity model is used internally.

mbs_localization provides 3d, real-time localization.

ROS Topics

• /odom (nav_msgs/Odometry)

  • Estimated sensor pose in the map frame

• /aligned\_points

  • Input point cloud aligned with the map

• /status (hdl_localization/ScanMatchingStatus)

  • Scan matching result information (e.g., convergence, matching error, and inlier fraction)

GPS-Navigation

• Launch the gps navigation driver via:

roslaunch mbs_gps_navigation gps_navigation.launch

Important

This driver should always be running when performing waypoint navigation.

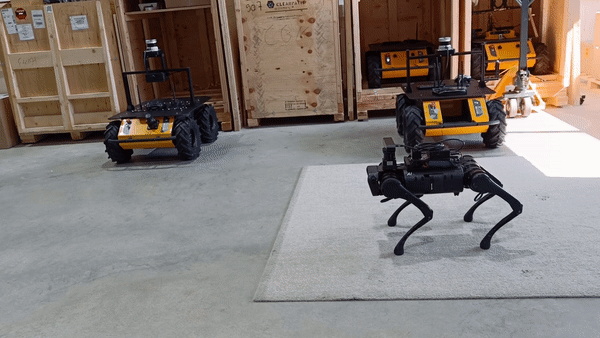

Indoor navigation

This will launch all the pre-configured settings of your navigation stack for odom.

• Next launch the record odom waypoints via:

roslaunch mbs_waypoint_follower indoor_record_waypoints.launch

• On launch, instructions will be displayed on the shell on the usage of initiating and storing the odom coordinates.

• Once you have saved your coordinates, you may launch the execution protocol via:

roslaunch mbs_waypoint_follower indoor_follow_waypoints.launch

Outdoor navigation

This will launch all the pre-configured settings of your navigation stack for gps.

• Next launch the record odom waypoints via:

roslaunch mbs_waypoint_follower outdoor_record_waypoints.launch

• On launch, instructions will be displayed on the shell on the usage of initiating and storing the GPS coordinates.

• Once you have saved your coordinates, you may launch the execution protocol via:

roslaunch mbs_waypoint_follower outdoor_follow_waypoints.launch

Controller Alternative for GPS Recording

• You may provide a list of GPS coordinates directly via gps_waypoints.yaml file located in the waypoints folder in the mbs_waypoint_follower package.

  • In it orientation represents the the quaternions of the final goal position and the position represents the latitude, longtitude, and altitude resepectively.

Navi-Configuration

Hardware Requirements

- Autonomous ground vehicle (AGV)
- Global positiong system (GPS) device
- Inertial measurement unit (IMU)
- Logitech controller

Optional Hardware Requirements

- LiDAR
- Camera

Important

Without an auxiliary sensor such as a LiDAR, obstacle avoidance in navigation cannot be performed nor localization.

Software Requirements

1. Ubuntu 18.04/Ubuntu 20.04

2. ROS-melodic/ROS-noetic

3. MYBOTSHOP GPS package

4. GPS package dependencies

Warning

The provided MYBOTSHOP GPS package allows for point to point navigation utilizing GPS coordinates. It integrates the MoveBase package which in turn allows for collision avoidance. This GPS package is currently designed for 2D planes with a planned expansion for 3D planes. Caution must be exercised when using the package around people and or in an un-constrained environment as any fault in sensors or misconfiguration may lead to an accident.

Configuration

In the provided package, several configuration have to be adjusted which are:

• Localization

  • GPS localization config file

  • Odom localization config file

• MoveBase

  • Base local planner params

  • Costmap common params

    • Global costmap params

    • Local costmap params

  • Movebase params

In-depth information is documented by the authors of the robot localization package.

Quick Tuning

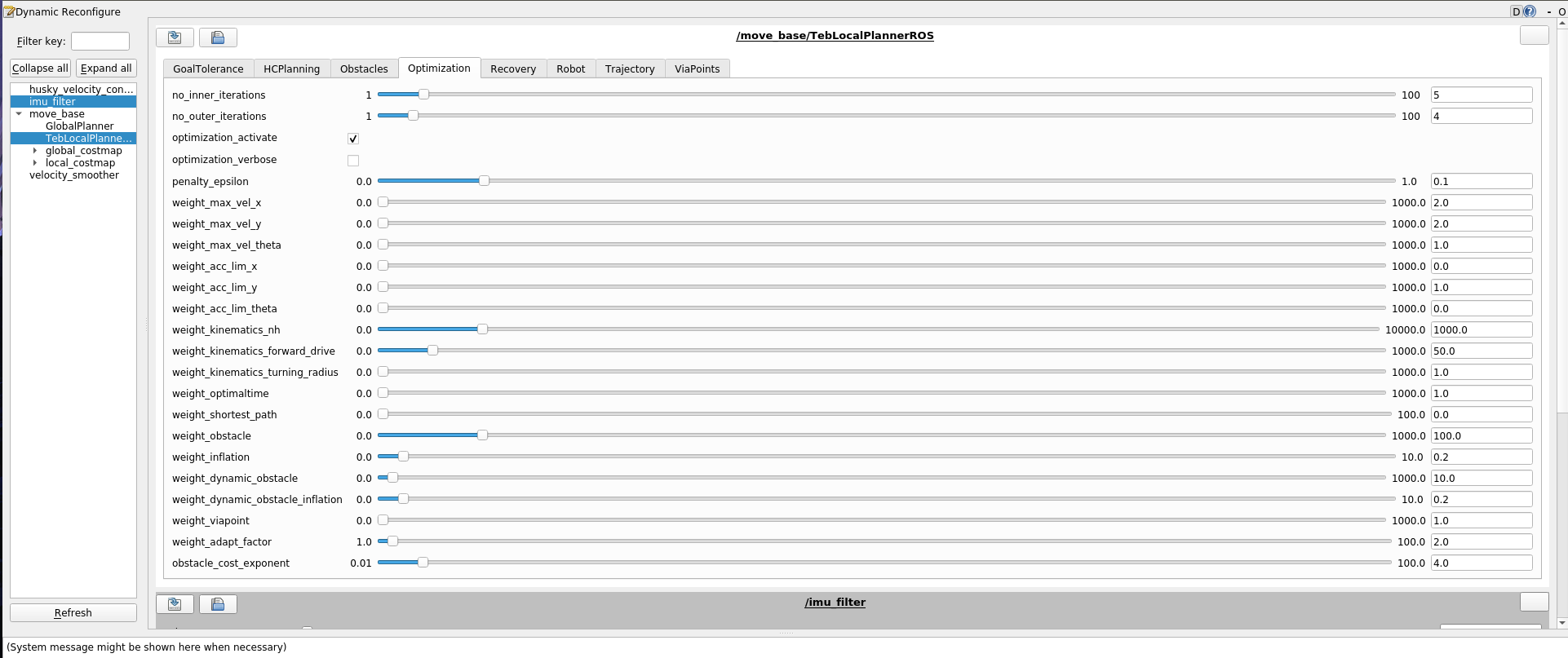

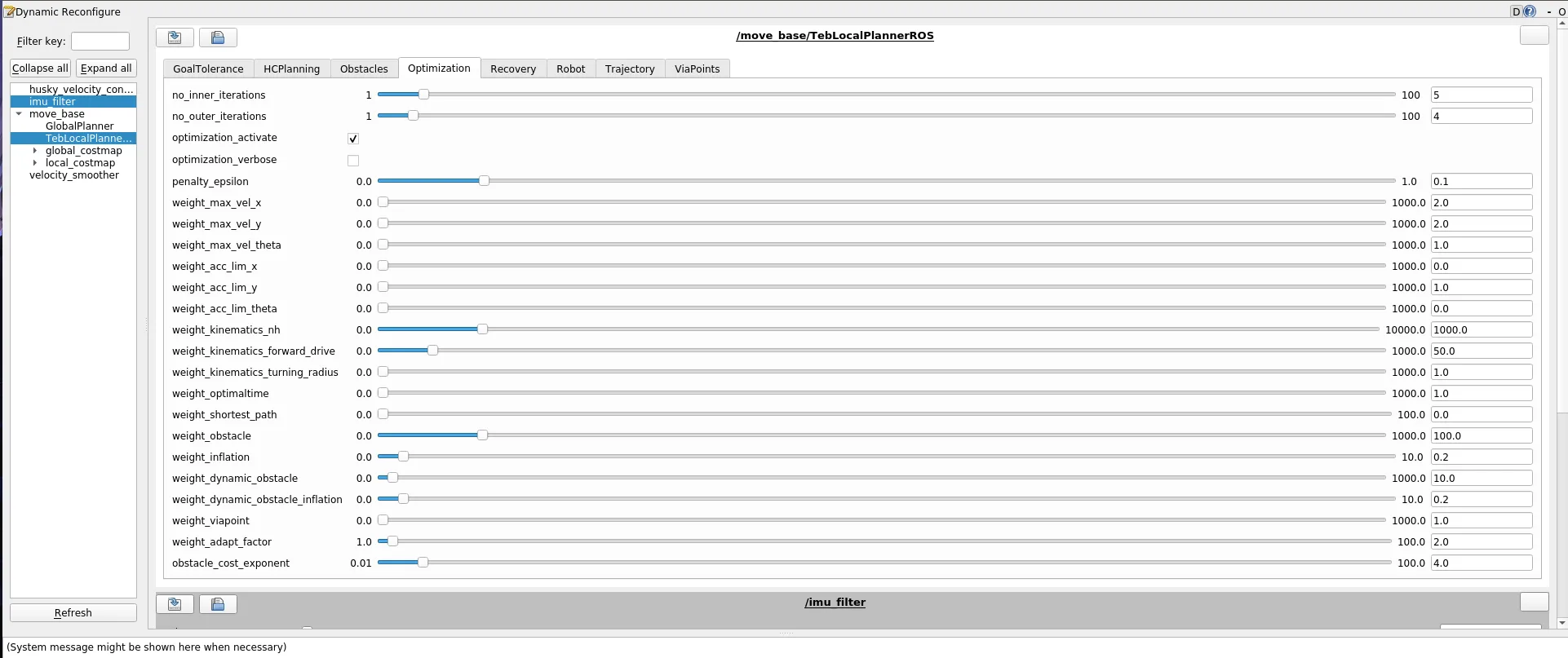

Quick tuning and configuration can be performed via rqt_reconfigure

rosrun rqt_reconfigure rqt_reconfigure

GPS Localization Config

In this configuration file, we combine three sensor readings, which are the robots odom, imu, and the gps.

• frequency: 20

  • The frequency depicts the rate at which the node publishes information.

• two_d_mode: true

  • It tells to ignore the height readings from the incoming sensors as we are navigating in 2D.

• publish_tf: true

  • Publishes a transform from the map frame to the odom frame

• transform_time_offset: 2

  • Offsets the transform as some packages require transforms to be future off-set by a few seconds.

Setting the sequence of transforms for this localization node.

• odom_frame: odom

• base_link_frame: base_link

• world_frame: map

• map_frame: map

It is important to change the odom to the odom published by your robot.

• odom0: /your_robot/odom

  • This is typically published by the robots controller

• odom0_config: [false, false, false, false, false, false, true, false, false, false, false, false,false, false, false]

  • The boolean values are (X, Y, Z, roll, pitch, yaw, Xv, Yv, Zv, rollv, pitchv, yawv, Xa, Ya, Za).

  • v is velocity and a is acceleration

• odom0_differential: true

  • This indicates whether the odom velocity should be computed from the given x and y positions.

• imu0: /imu/data

• imu0_config: [false, false, false, false, false, true, false, false, false, false, false, true, true, false, false]

  • The boolean values are (X, Y, Z, roll, pitch, yaw, Xv, Yv, Zv, rollv, pitchv, yawv, Xa, Ya, Za).

  • v is velocity and a is acceleration

• imu0_differential: false

• odom1: /odometry/gps

  • This is typically published by the navsat node. Ensure that the correct topic is used according to what you have assigned.

• odom1_config: [true, true, false, false, false, false, false, false, false, false, false, false, false, false, false]

  • The boolean values are (X, Y, Z, roll, pitch, yaw, Xv, Yv, Zv, rollv, pitchv, yawv, Xa, Ya, Za).

  • v is velocity and a is acceleration

• odom1_differential: false

It is highly important to tune the process noises.

• process_noise_covariance:

  • This determines on how much to trust the incoming data. Each line represents X, Y, Z, roll, pitch, yaw, Xv, Yv, Zv, rollv, pitchv, yawv, Xa, Ya, Za. Values for these are assigned along the diagonals.

• initial_estimate_covariance:

  • This determines on how much to trust the initial data. Each line represents X, Y, Z, roll, pitch, yaw, Xv, Yv, Zv, rollv, pitchv, yawv, Xa, Ya, Za. Values for these are assigned along the diagonals.

For more information, the following repository by MethylDragon has a great explanatory guide.

Odom Localization Config

In this configuration file, we combine two sensor readings, which are the robots odom, and imu.

• frequency: 20

  • The frequency depicts the rate at which the node publishes information.

• two_d_mode: true

  • It tells to ignore the height readings from the incoming sensors as we are navigating in 2D.

• publish_tf: true

  • Publishes a transform from the odom frame to the map frame

• transform_time_offset: 1

  • Offsets the transform as some packages require transforms to be future off-set by a few seconds.

Setting the sequence of transforms for this localization node.

• odom_frame: odom

• base_link_frame: base_link

• world_frame: odom

It is important to change the odom to the odom published by your robot.

• odom0: /your_robot/odom

  • This is typically published by the robots controller

• odom0_config: [false, false, false, false, false, false, true, false, false, false, false, false,false, false, false]

  • The boolean values are (X, Y, Z, roll, pitch, yaw, Xv, Yv, Zv, rollv, pitchv, yawv, Xa, Ya, Za).

  • v is velocity and a is acceleration

• odom0_differential: false

  • This indicates whether the odom velocity should be computed from the given x and y positions.

• imu0: /imu/data

• imu0_config: [false, false, false, false, false, true, false, false, false, false, false, true, true, false, false]

  • The boolean values are (X, Y, Z, roll, pitch, yaw, Xv, Yv, Zv, rollv, pitchv, yawv, Xa, Ya, Za).

  • v is velocity and a is acceleration

• imu0_differential: false

MoveBase Local Planner

TEB planner TEB planner tuning

Important

It is important to note that the DWA planner is no longer used and we use the TEB planner. Configuration for the teb planner can be found in the TEB planner wiki. An excellent resource for tuning your TEB planner is vailable in TEB planner tuning.

It is recommended to configure the move base planner to ensure correct movement. Several important ones are:

• meter_scoring: true

  • When true distance is measured in meters.

• yaw_goal_tolerance: 0.157

• Tolerance in radians for movebase.

• xy_goal_tolerance: 0.25

• Tolerance in xy coordinates for movebase.

• path_distance_bias: 0.35

• Weighting factor of how close the robot should stay to the path.

• goal_distance_bias: 1.0

• Weighting factor of how close the robot should attempt to reach the goal.

• heading_lookahead: 0.325

• Tolerance of looking ahead for available space for turning.

For more information, the following MoveBase Wiki has a brief explanation.

Costmap Common Params

The costmap will be used to integrate and utilize your existing sensor for collision avoidance.Important parameters for this are:

• footprint: [[-0.21, -0.165], [-0.21, 0.165], [0.21, 0.165], [0.21, -0.165]]

• The footprint defines a square size for the robot. The robots mid point is taken as 0,0 and the the corner points are the distance from the mid point.

• footprint_padding: 0.1

• Safety-gap that inflates the original footprint.

• obstacle_layer:

• Sensors that are utilized for sensing. Typically, scan is used for LiDARs and the sort. Important is to change the sensor_frame to match the URDF and the topic to match the input message of the LiDAR.

For more information, the following Costmap Wiki has a brief explanation.

Global Costmap Params

The global costmap of movebase node, as the name states publishes the global costmap. It takes the map, provided by the map server as a static layer. An important point to note is that some warning messages may occur if the on board computer system do not compute the transforms fast enough. These warnings can be ignored.

Local Costmap Params

The local costmap of movebase node publishes the local costmap. It ypically requires the odom frame to operate. However, as we want to depend solely on our GPS, we utilize the map frame for the local costmap as well.

MoveBase Params

The movebase params are important for changing the planner frequency and controller frequency. Usually the default settings are sufficient.

• recovery_behavior_enabled: true

• It rotates the robot to recover from faulty planning failures or positioning, at times this is not desirable and may need to be turned off.
